Thermal Conductive Fluoroelastomer Adhesive
X-71-6234

X-71-6234 is a thermal conductive fluoroelastomer adhesive which possesses excellent resistance to oils and chemicals.

Features

  • Keeps elasticity in the range of -40ºC~200ºC
  • Possesses excellent resistance to chemicals, oils, heat and moisture as a result of perfluoropolyether based main chain
  • Stable thermal conductivity even in harsh environment

Applications

  • Heat dissipation for electoricities exposed to oils like ATF
  • Oil cooling system for rechargeable batteries or high power motors
  • Protection for thermostats, sealing for circuit boards
  • Thermal property improvement for various connections

Page Top

General Properties

Before Curing
Features Light reddish brown
Viscosity 23ºC 520Pa·s
Shelf life at or below 10ºC 6months
After Curing (Standard curing conditions:150ºC/1hr)
Density at 23ºC 3.22g/cm3
Hardness Durometer A 69
Tensile strength 1.1MPa
Elongation at break 20%
Tensile lap-shear strength Epoxy/Epoxy 0.9MPa(bond-line-thickness)
SUS/SUS 0.8MPa(bond-line-thickness)
Thermal conductivity 2.0W/m.k
Dielectric Strength in oil 20kV/mm

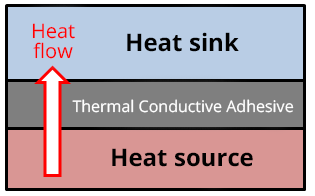

Dimension diagram example

Dimension diagram example

Put between heat source and heat sink to enhance heat flow.

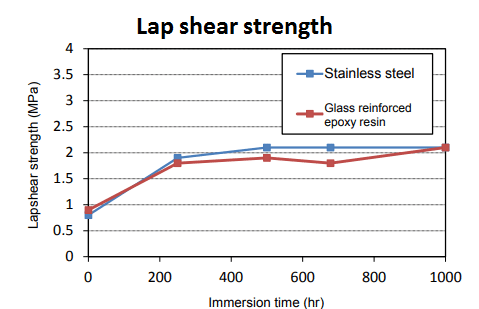

Lap shear strength

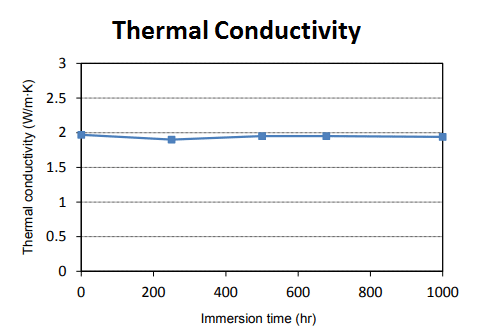

Thermal Conductivity

Page Top

No change in appearance

Selling point

Applicable for harsh environment such as exposed oils or solvents.
Where silicone-based materials can not be used.

virgin rubber After immersion
